Chainway UR1A Fixed RFID Reader

Key features

  • OS: Android 11 Go

  • Processor: Quad-Core 2.0GHz

  • Memory: 2GB RAM + 8GB Storage

  • Scan: Reads QR & Barcode (100–150mm)

  • Connectivity: 4G, WiFi, Bluetooth, GPS

  • Display: 4″ IPS Touchscreen (480×480)

Chainway UR1A Fixed RFID Reader – Compact Solution for Smart Tracking

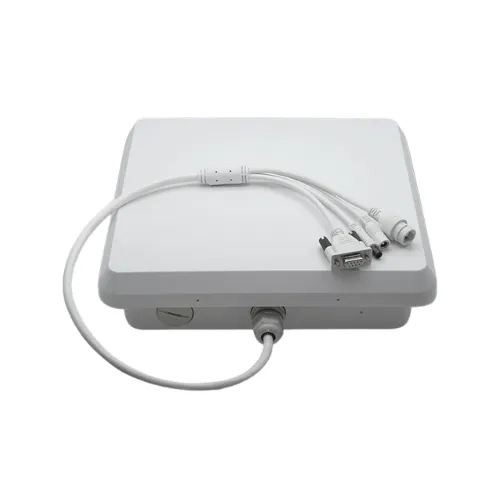

Chainway UR1A Fixed RFID Reader

The Chainway UR1A Fixed RFID Reader is a lightweight, even so advanced device designed to handle modern identification and tracking tasks. It runs on Android 11 Go and is powered by a quad-core 2.0GHz processor, giving it smooth performance for everyday business operations. With 2GB RAM and 8GB storage, it supports important applications for data collection without lag.

This model is equipped with a 4-inch IPS touchscreen (480×480 resolution) that makes it easy to use in different environments. For scanning, it is able to read QR codes and barcodes within a 100–150mm range, making it useful for both entry control and product management. Its wide range of connectivity options including 4G, WiFi, Bluetooth, and GPS fixes that data can be transferred fastly and securely. With this mix of features, the UR1A stands as a practical fixed RFID reader proper for businesses of different sizes.

Chainway UR1A Fixed RFID Reader in Bangladesh – Smart Data Handling

UR1A Fixed RFID Reader different view



When companies look for the Chainway UR1A Fixed RFID Reader in Bangladesh, they usually need a tool that can manage both stock and access in an organized way. The UR1A makes this possible with its quick scanning ability and solid design. It can easily be placed on offices, retail stores, or small warehouses to facilitate identification tasks.

In the growing UR1A Fixed RFID Reader BD market, this device has earned attention because it delivers both scanning speed and trustworthy connectivity. Either in banks, logistics companies or healthcare facilities. This is seen as an cost-effective entry point into RFID-based automation. It’s not just limited to large factories—small and medium businesses in Bangladesh can benefit from this model as well.

Chainway UR1A Fixed RFID Reader Uses Platform – Multipurpose Application

UR1A Fixed RFID Reader different view



The Chainway UR1A Fixed RFID Reader uses a platform designed to support multiple industries and working environments. It is not just a basic scanner. It offers an Android-based operating system that allows businesses to install apps, run reports and personalize usage according to their daily needs. The touchscreen interface makes navigation simple even for staff with little technical training.

From garment factories to hospitals, the UR1A can be applied in different ways. In the garments industry, such as, it can help manage raw materials, track finished goods and control employee access. By integrating with management software, it allows quick updates on stock levels, making workflows more exact. This flexibility makes the UR1A one of the more flexible devices in its category.

Chainway UR1A Fixed RFID Reader Setup – Easy Integration



The Chainway UR1A Fixed RFID Reader setup process is simple and does not require heavy foundation changes. It connects smoothly through WiFi, Bluetooth or 4G, so businesses can link it with their existing systems in just a few steps. The HDMI output option adds another layer of integration, enabling the reader to be paired with display monitors for visual data output when needed.

For the garments industry in Bangladesh, this device has proven especially useful. The Chainway UR1A Fixed RFID Reader for garments industry makes it simple to monitor production lines, control entry points and track shipments. With its ability to handle both barcode and QR code scanning, it reduces manual work and supports faster decision-making.

Why Choose the Chainway UR1A Fixed RFID Reader?



The Chainway UR1A Fixed RFID Reader is designed to bring more accuracy and speed to tracking systems. With its Android interface, businesses gain flexibility to run apps and manage tasks directly on the device. Its ability to scan quickly, paired with multiple connectivity options, helps organizations cut down on delays and reduce manual workload.

If you are running a bank office, a retail store, a garment factory or a logistics company in Bangladesh, the UR1A offers a smooth way to handle identification and monitoring. It allows teams to focus more on productivity instead of repetitive checking.

 If your organization is ready to upgrade its data handling and scanning process, the Chainway UR1A Fixed RFID Reader is a smart choice. Contact us today to order and make your business operations faster, simpler and more effective.



Detailed Description



Category Specification
Physical Characteristics
Dimensions 270 × 270 × 77mm / 10.63 × 10.63 × 3.03in (9dBi)

130 × 130 × 60mm / 5.12 × 5.12 × 2.36in (6dBi)

Weight 2230g / 78.66oz (9dBi)

620g / 21.87oz (6dBi)

Material Plastic + Aluminum Alloy
Input Voltage DC 9V – 12V
Standby Current < 30mA
Current Working 800mA ± 5% @ DC 12V Input

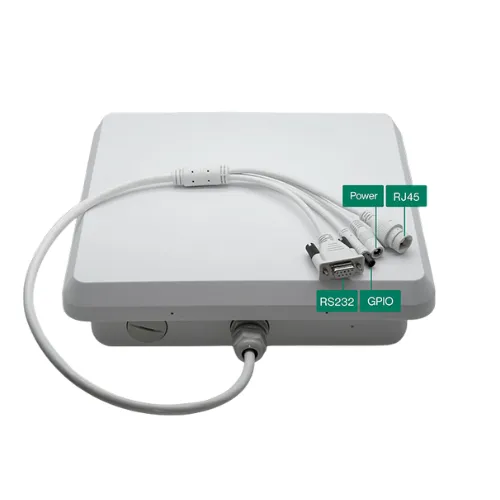

Comm Interface RS-232, RJ45, GPIO
Baud Rate 115200bps
Cooling Mode Air cooling
Communication Method 10/100 Base-T Ethernet (RJ45)
User Environment
Operating Temp. -25°C to 65°C / -13°F to 149°F
Storage Temp. -40°C to 85°C / -40°F to 185°F
Sealing IP65 per IEC sealing specifications
Humidity 10%RH – 95%RH non-condensing
RFID UHF
Engine CM710-1, based on Impinj E710
Impinj Gen2X Supported
Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Frequency 865-868MHz / 920-925MHz / 902-928MHz
Output Power 1W (30dBm, support +5~-30dBm adjustable)

2W Optional (33dBm, support +10~-33dBm adjustable, for Latin America, etc.)

Output Power Precision ± 1dB
Output Power Flatness ± 0.2dB
Receive Sensitivity < -84dBm
Fastest Read Rate 950+ tags/sec
RSSI Supported
Ambient Temp Monitor Supported
Antenna 1
Frequency 865-868MHz / 920-925MHz / 902-928MHz
Polarization Mode RHCP (Right-handed Circular Polarization)
Gain 9dBi
Horizontal Angle 60°
Vertical Angle 55°
VSWR ≤ 1.3
FBR 17dB
Characteristic Impedance 50Ω
Maximum Input Power 20W
Lightning Protection DC Ground
Antenna 2
Frequency 865-868MHz / 920-925MHz / 902-928MHz
Polarization Mode RHCP (Right-handed Circular Polarization)
Gain 6dBi
Horizontal Angle 105°
Vertical Angle 95°
VSWR ≤ 1.3
FBR ≥ 20dB
Characteristic Impedance 50Ω
Maximum Input Power 20W
Lightning Protection DC Ground
